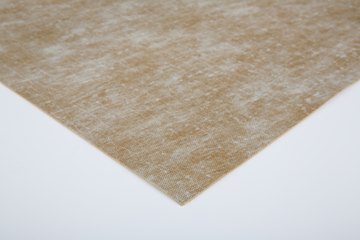

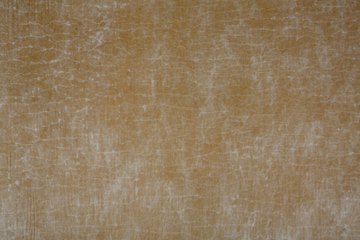

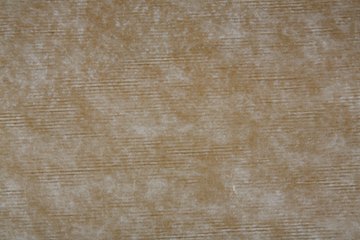

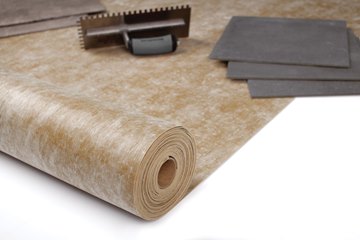

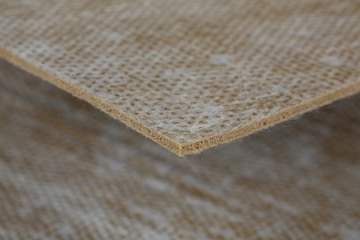

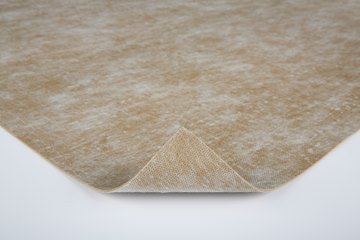

ACI-125®
ACI-125® provides unmatched, extreme-density support under today’s ceramic and porcelain tile. It helps reduce the transmission of sound associated with tile floors and protects against substrate cracks up to 1/8”.
Applications
For use under
- Ceramic and Porcelain Tile
Also for use under
- MLF/LVT/Rigid Core with attached back
- Laminate
- Sheet Vinyl
- Engineered hardwood
- Solid hardwood
Benefits
- Extreme density for unmatched support under today’s popular ceramic and porcelain tile
- Pliable rubber composition allows movement to reduce stress transmission from the concrete slab to the tile installation to help prevent tiles from cracking
- Protects against horizontal, in-plane, slab substrate cracks up to 1/8”
- Helps reduce sound transference between floors and retains acoustic properties over time
- Can be used above or below grade and installs quickly
- For use over in-floor heating and is recommended by the Radiant Professionals Alliance as an excellent choice
- Fresh Dimension® antimicrobial helps to inhibit the growth of mold, mildew, and odor-causing bacteria
- Meets or exceeds the CRI Green Label Plus program for indoor air quality
| Specification Name | Standard | Metric |
|---|---|---|
| Item no. | BM0087 | BM0088 |
| Density | 66 lbs/ft³ or 42 oz/yd² | 66 lbs/ft³ or 42 oz/yd² |
| Thickness | 0.051″ (1.30mm) | 0.051″ (1.30mm) |
| Dimensions | 36′ x 33.33′ | 54′ x 44.44′ |
| Ft²/roll | 100 | 200 |
| Roll weight | 28 lbs | 56 lbs |
| Color | Tan | Tan |
| R-value | 0.02 | 0.02 |
| IFD @ 25%/65% | 677.2 lbs/5,000+ lbs | 677.2 lbs/5,000+ lbs |
| Permeance | 2.329 ASTM E96* | 2.329 ASTM E96* |
| Water vapor emission | 0.511 lbs/1000 ft2/24 hr ASTM E96 | 0.511 lbs/1000 ft2/24 hr ASTM E96 |
| Castor durability test | Passes 25,000 Cycles** | Passes 25,000 Cycles** |
| Material content | Made of high-density synthetic rubber | |
| Indoor air quality | Passes California Section 01350 for low VOC emissions | |
| Impact Insulation Class (IIC) | 73 |
|---|---|
| HIIC | 88 |
| ΔIIC | 22 |
| Sound Transmission Class (STC) | 64 |
| Indoor Air Quality: | Passes California Section 01350 for low VOC emissions |
|---|---|
| Antimicrobial: | Fresh Dimension® |
Footnotes
- * Conduct moisture tests in accordance with flooring manufacturer installation guidelines and requirements
- ** Passes Castor Durability Test for 25,000 cycles when tested under minimum of 3 mm double-glued luxury vinyl plank and minimum 3.2 mm floating-click
