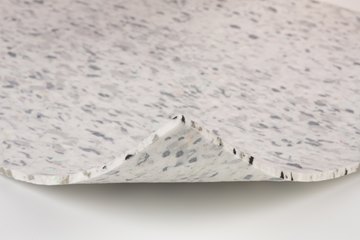

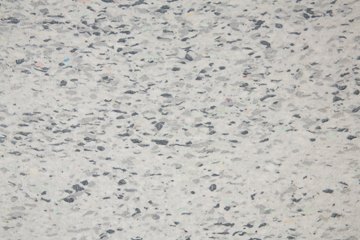

Pad-Loc Maritime Carpet Support®
Pad-Loc is a maritime carpet cushion that dramatically reduces carpet wear and extends appearance retention. It is 65% lighter than comparable products and features a low-profile design that provides excellent door clearance. Pad-Loc rebond cushion is excellent for reducing airborne and impact-noise transmission and helps reduce body stress and fatigue. It also includes Fresh Dimension® antimicrobial that works to inhibit the growth of mold, mildew, and odor-causing bacteria. Complies with SOLAS and U.S. Coast Guard requirements.
Application
Martime Broadloom Carpet – Double-Glue
Benefits
- Dramatically reduces carpet wear and extends appearance retention
- Fuel Saver – 65% less weight than comparable products
- Low-profile design provides excellent door clearance
- Noise Reduction – Rebond cushion is excellent for reducing airborne and impact noise transmission
- Helps reduce body stress and fatigue
- Fresh Dimension® antimicrobial treatment inhibits the growth of mold, mildew, and odor-causing bacteria
- Recyclable at the end of its useful life
Specification Name | Standard | Metric |
---|---|---|
Item no. | BZ0465 | BZ0465 |
Density | 11.5 lbs/ft.³ | 184 kg/m³ |
Thickness | 0.180″ (+/- 0.020″) | 4.6 mm (+/- 0.508 mm) |
Dimensions | 6′ x 60′ | 1.83 m x 18.3 m |
Roll size | 360 ft² | 33.4 m² |
Compression force deflection @ 25% / 65% deflection | 3.2 psi/18.6 psi | 22 kPa/128.2 kPa |
Compression set (Max) | 14.0% | 14.0% |
Tensile strength | 28 psi | 193 kPa |
Impact Sound Transmission (ASTM E492-77) | IIC 71 | IIC 71 |
Commercial traffic class | Heavy | Heavy |
IMO FTPC Part 5, IMO Res. A.653 (16) | Passes | Passes |
IMO FTPC Part 2, ISO 5659-2:2006 | Passes | Passes |
Wheel mark certificate | LRD No. 0525 | LRD No. 0525 |
Lloyd’s Register certificate of fire approval | SAS F090321 | SAS F090321 |
Antimicrobial | Fresh Dimension® | Fresh Dimension® |
CRI indoor air quality testing | Green Label Plus | Green Label Plus |
Assigned U.S. Coast Guard module B no. | 164.117/EC0038 | 164.117/EC0038 |

Product Downloads
LRD No. 0525
