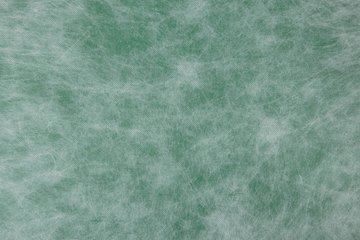

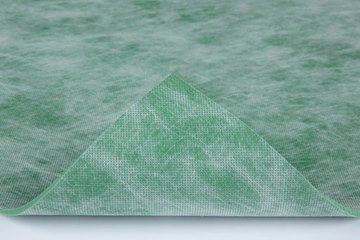

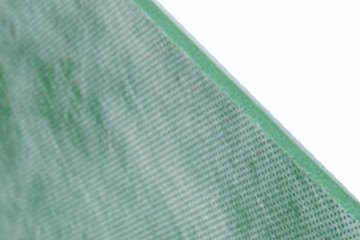

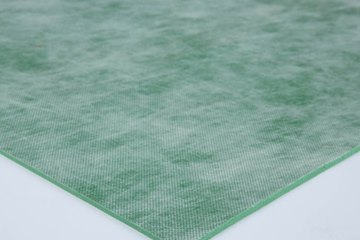

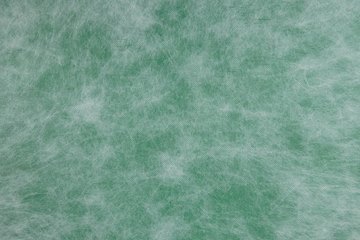

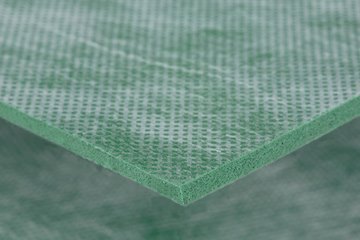

Tred-MOR® Carpet Tile Cushion
Carpet Tile Cushion is a subfloor surface liner designed to be installed under modular carpet tile. The product rolls out onto the subfloor, creating a sound and moisture barrier while also offering premium comfort. Becomes a “clean-start” liner between the subfloor and finished floor, leveling out any minor irregularities. It can be installed on, above, or below grade.
Application
Carpet Tile
Recommended Use
- Business Office
- Senior Living
- Campus Housing
- Public Space
Benefits
- Clean-start subfloor surface lining
- Anti-fatigue comfort
- Acoustical barrier passive vibration isolation
- Double glue or conventional stretch-in
- Breathable moisture barrier
- Radiant heat-friendly
| Item no. | BV0341 |
|---|---|
| Color | Bright green |
| Material content | 100% synthetic rubber |
| Traffic classification | Extra heavy |
| Material weight | 62 oz./yd² |
| Density | 33 lbs./ft³ |
| Thickness | 0.156″ |
| Roll weight | 62 lbs. |
| Roll dimension | 54″ x 30′ (15 yd²) |
| Compression set @ 50% | 15.0% |
|---|---|
| Compression load deflection @ 25% | 7.0% |
| Compression load deflection @ 65% | 45.0% |
| Breaking strength – length | 45.0 psi |
| Breaking strength – width | 41.0 psi |
| Impact insulation class (IIC) | 65 |
|---|---|
| Sound Absorption (NRC) | 0.30 |
| Pill test: | Pass |
|---|---|
| Smoke density: | Pass |
| Radiant panel | Composite test required w/ broadloom carpet and adhesive |
| Resistance to topical liquid | 100% |
|---|---|
| Vapor permeance from slab | Class III Vapor semi-permeable |
